Oscillating Sprinkler
Perfect for large rectangular areas
Recommended Extras
Product Video
See it in action! Watch a video featuring this product to learn more.

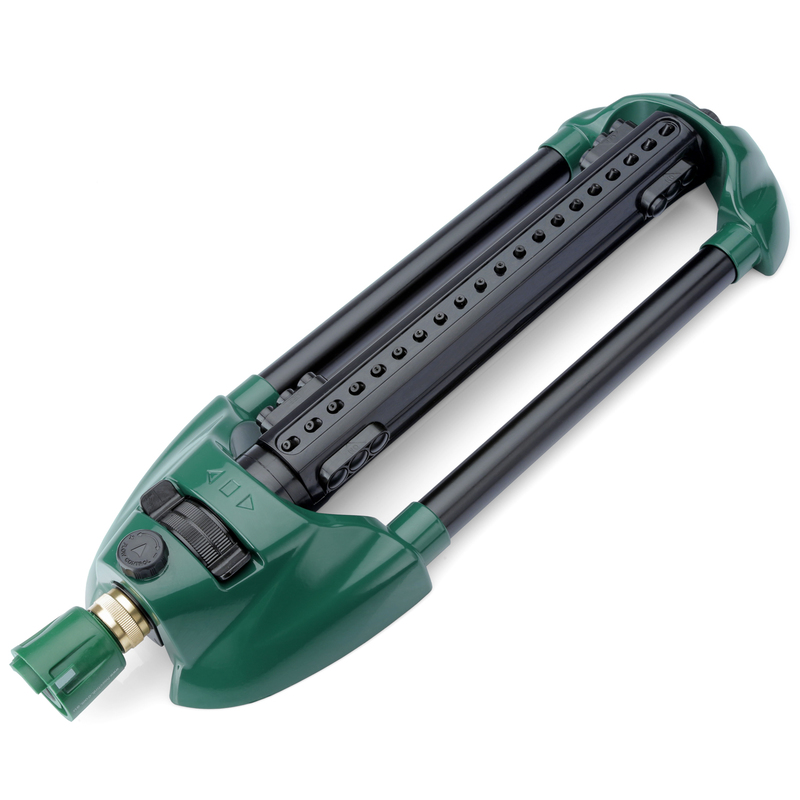

Hoselink’s Oscillating Sprinkler is specially designed for watering large sections of gardens and lawns.
This premium sprinkler performs well even with low water pressure and is particularly good for use with a Retractable Hose Reel.
The Oscillating Sprinkler has a number of adjustment controls ideal for all of your watering needs. It has a rectangular spray coverage that can be adjusted to cover an area up to 15m x 12m.
Featuring water flow control and a number of different spray settings, you can easily customise the saturation level and spray type of the Oscillating Sprinkler to suit a variety of gardens. This flexibility allows you to effortlessly water a narrow lawn, against an edge, or only one side of your lawn.
With its metal construction, you can rely on the durable Oscillating Sprinkler to remain sturdy and not tip over. It also features a built-in cleaner and fine mesh filter to protect it from dirt and debris.
The Oscillating Sprinkler comes pre-fitted with a Hoselink Accessory Connector (12mm) for a quick and easy connection to your Hoselink fitted hose. Therefore if you do not have any existing Hoselink fittings then you will need to purchase a Hose End Connector to attach this sprinkler to your hose.
Please Note: this product is not recommended for use with bore water.
Product Specifications
| Model Name | Oscillating Sprinkler |
| Model Number | 5642 |
| Material | Zinc metal body with powder coating, impact ABS spray tube, brass |
| Colour | Green, black |
| Maximum Pressure | 120psi |
| Dimensions | 48cm |
| Spray Coverage Area | Up to 15m x 12m (dependant on water pressure) |
| UV Resistant | Yes |
| Assembly Required | No |
| Hose Fitting Size | 12mm |
| Individual Item | No |
| Warranty | 1 year |
What's Included
- Oscillating Sprinkler (x1)
- Hoselink Accessory Connector (x1)
- Fitting Instructions
Q. I can't find the cleaning pin on my Oscillating Sprinkler, where is it?
A. The cleaning pin is black and can be found at the end of the sprinkler, opposite to where the water goes in. Sometimes it can be quite tight to undo the first time. If you cannot undo the pin at the end, try using pliers to grip it or alternatively an opened paper clip can be substituted to clean the holes. Watch our product video above for a demonstration.
Q. How can I adjust the water flow?

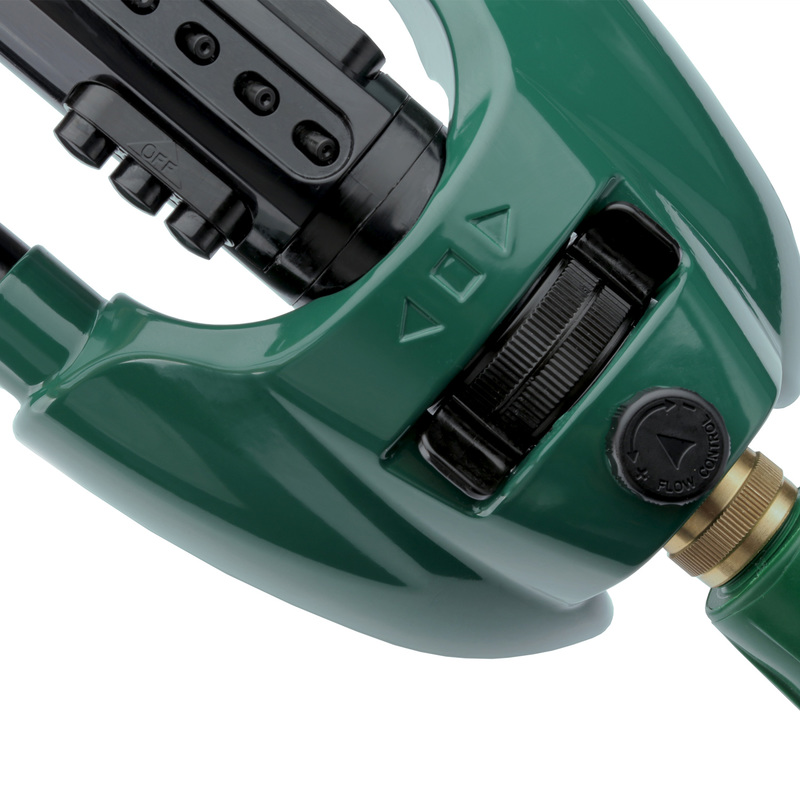

A. Next to the water inlet you will find a small black dial with plus/minus symbols displayed. Turn the flow control dial to increase or decrease water through the Oscillating Sprinkler to suit the size of the area you are watering.
Q. Some of my spray nozzles have been lost. Can I replace these?
A. Yes, we have these nozzles as a spare part if you would like to call Hoselink on 1300 900 617 and we can arrange for this to be sent to you.
Q. Can I adjust the width of the water spray?

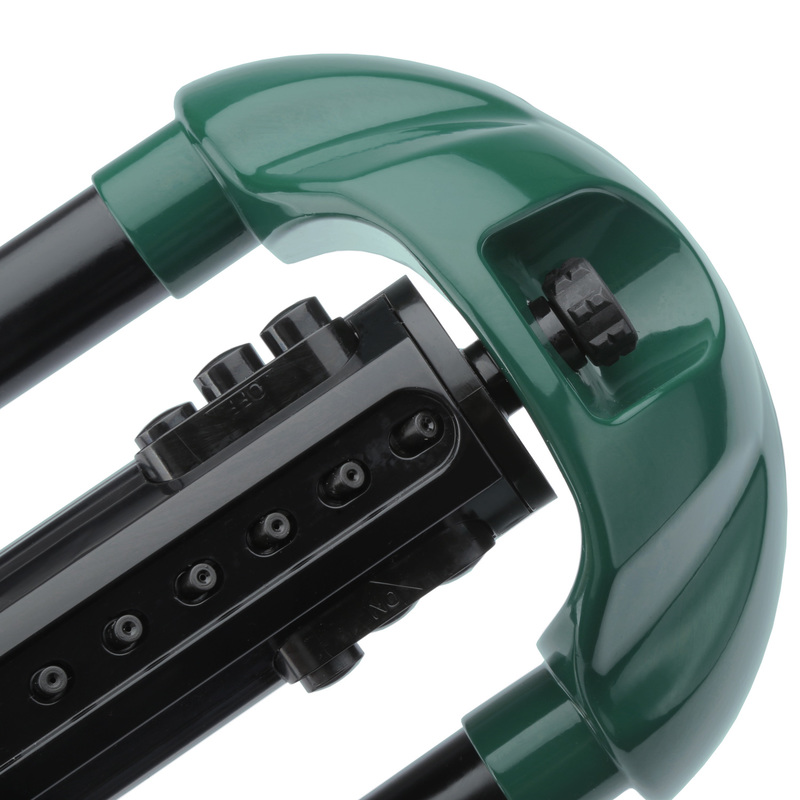

A. Yes! You will find three push-in buttons in a row on either end of the sprinkler. Each button you push in will stop the water coming out of that particular jet nozzle, therefore reducing the width of the water spray.
Q. Can I adjust how much the sprinkler oscillates?
A. Yes, simply slide the tabs found at the water inlet end to the desired oscillating range.
Q. How far does the Oscillating Sprinkler reach?
A. With good water pressure, the Oscillating sprinkler reaches a distance of 12m x 15m, so is well suited to large yards.
Q. Can I use the Oscillating Sprinkler with non-Hoselink fittings?
A. Yes, however, we recommend using Hoselink fittings with this product for a guaranteed no-burst, no-leak connection. You can purchase a Hoselink Hose End Connector to attach this sprinkler to your garden hose. Then, simply couple this together with the pre-fitted Accessory Connector that comes with the Oscillating Sprinkler.
Alternatively, you will need to find a standard ¾-inch male click-on fitting to screw into the Oscillating Sprinkler outlet, which will then allow you to connect to a standard female click-on hose fitting.
Q. Does the Oscillating Sprinkler come with a warranty?
A. The Oscillating Sprinkler comes with a 1-year warranty. At Hoselink we always work hard to resolve any problem you may have, so even after this time you can contact us on 1300 900 617 and we will endeavour to help you. We warrant our products to be free of defects in materials and workmanship that result in failure during normal usage. Warranties are extended to the original end-user purchaser, beginning at the time of retail purchase. This warranty does not cover misuse, unauthorised modifications, and external causes such as acts of nature. This warranty does not cover normal wear and tear, or damage to any non-Hoselink product used in connection with a Hoselink product. This warranty does not apply to damage caused by accident, abuse, misuse or modification of the product.
Q. How do I make a warranty claim for my Oscillating Sprinkler?
A. Simply contact our Customer Care team by telephone on 1300 900 617 during business hours (Mon-Fri 9am to 5pm), or email us at hello@hoselink.com.au. You will need to provide details of the original purchaser, order number (if known), and details regarding the product fault. Emailing a (small size) photo showing the problem is often helpful in expediting the claim and may be requested in some cases. Items will be replaced with the same item originally purchased, or the closest available product in our current range. For items that cannot be replaced a full refund will be offered. If we require you to return the item to us for inspection, we will supply you with a return shipping label, at no cost to you.
Q. My oscillating sprinkler is blocked, how do I clean it?
A. Use the cleaning pin to poke each of the fine holes. Then, with the cleaning pin unscrewed from the end of the sprinkler, flush water through the sprinkler to clear any grit. If your water supply is quite gritty, you may wish to try an In-line Water Filter to trap dirt at the tap.
