Total Misting Package (Kit + Timer)

All-in-one solution to staying cool this summer!

Product Video

See it in action! Watch a video featuring this product to learn more.

Product Info

Download Manual

Not sure where to start? Download a manual for this product in PDF format.

Fully customisable to suit your area.

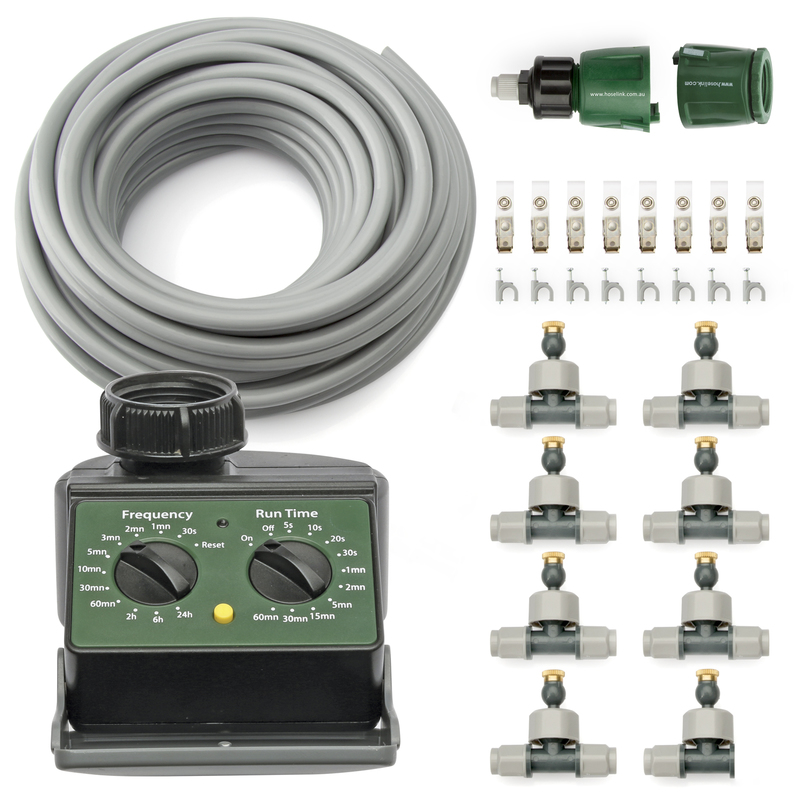

Kit includes: 15m Misting Kit with Directional Heads, Misting Timer and Tap Connector.

Perfect for your outdoor entertaining area or greenhouse, each outlet emits a very fine misting spray to supply a cooling, dampening effect to your patio, plants and animals or wherever else you need it. The timer frequency can be set at short intervals for the perfect cool environment.

Misting Kit

The fully customisable kit features a 15m long, 5mm diameter PVC tube with 8 misting connections to suit your area and it comes with a FREE Hoselink Universal Tap Connector and Accessory Connector for quick connection to your hose. Each misting outlet can be inserted into the tubing at a distance between 50cm - 1.5m.

Uses

Sets up a misting environment suitable for greenhouses
Keep large outdoor areas such as patios and decks cool with the fine, cooling mist
Keep pet kennels cool during hot weather

Where to attach

Attach to walls, beams or the underside of roofing using the supplied hanging snap clips or nail with supplied clips for more permanent fixing

How to connect to the water supply

This kit is supplied with a Hoselink Accessory Connector so you will need additional parts to connect to the tap. Depending on the distance between the tap and where the kit will be loacted, you can either connect the kit to a Hoselink-fitted hose or to a Hoselink Tap Connector (supplied in kit).

Water Pressure

Be sure to use LOW water pressure with this unit - a quarter turn of the tap will suffice in most situations. High water pressure may result in burst hoses which will void the warranty.

Misting Timer

Use this specialised timer with a misting watering system in outdoor entertaining areas and greenhouses.

Frequency options: 30s, 1min, 2min, 3min, 5min, 10min, 30min, 60min, 2hr, 6hr, 24hr
Run time options: 5s, 10s, 20s, 30s, 1min, 2min, 5min, 15min, 30m, 60m

Requires a 9V battery, not included.

If you require additional individual parts for this kit, they can be purchased online here: https://www.hoselink.com.au/spare-parts

15m Misting System Hose

15m grey PVC hose line.

Misting System Inline Mist Valve x 7

Misting head that connects to the hose line on either side.

Misting System Stop Mist Valve

Use to stop water flow at the end of the misting hose line. Also acts as a misting head.

Misting System Installation Clip x 8

Hanging snap clip used to secure the hose line to wire, string or other suitable fixture.

Misting System Installation Pin x 8

Plastic u-shaped fitting used to secure the hose line to timber.

Misting System Hose Connector

Connects the misting system hose line to your water source. Use with the Accessory Connector (included) to attach your Hoselink fitted hose.

Universal Tap Connector

Screws onto any size Australian tap for a watertight seal between your tap and hose. Can be used with accessories that have a male thread (e.g. pressure washers, caravans, boats).

Misting Timer

Specialised misting timer with run times starting from 5 seconds and multiple frequency options. Ideal for greenhouses and outdoor entertaining areas.

Product Specifications

Model Name	15m Total Misting Package
Model Number	5827
Material	Rubber, plastic, brass
Colour	Grey, black, brass
Misting Heads	7x Directional Misting Heads 1x End Misting Head
PVC Hose	15m length, 5mm internal diameter
Clips	8x Nail U-Clips 8x Hanging Snap Clips
Assembly Required	Yes
Hose Fitting Size	12mm
Individual Item	No
Warranty	1 year

What's Included

1x Misting Timer
1x 15m White PVC Hose
7x Directional Misting Heads
1x End Misting Head
1x Hoselink Accessory Connector
1x Hoselink Universal Tap Connector
1x Black Hose End
8x Nail U-Clips
8x Hanging Snap Clips
Latest Hoselink Catalogue

Q. How long is the hose from the tap?
A. This is a fully customisable kit so you can cut the 15m hose as it best suits your situation.

Q. What do I do if I want to set up the kit far away from the tap?
A. You can attach a regular hose to the connection point where you want to start the misting system.

Q. What the best way to set up the system if I'm using it in an outdoor entertaining area?
A. It's best to have the misting heads located just outside where people will be sitting, and not directly overhead (or over tables, etc). When using the system with the Misting Timer (recommend for this purpose), there is some residual dripping from the heads when the water stops. It's best for you and your guests to enjoy the mist without dripping on your head.

Q. Can I get additional parts to add to my kit?
A. Yes, we now sell each of the kit components individually, all are listed in the Spare Parts category and can be ordered online: https://www.hoselink.com.au/spare-parts
