30m Retractable Hose Reel
Long length for big backyards
Product Video
See it in action! Watch a video featuring this product to learn more.
Now with Retractable Hose Reel Plugs included!
Are you fed up with leaking, bursting hose fittings and unsightly hoses that tangle and kink? Then get set because Hoselink’s Retractable Hose Reel will revolutionise the way you water!
If you’re new to Hoselink, you’ll find our products are carefully designed to be durable, attractive and most of importantly, easy to use. For larger sized gardens, the 30m Retractable Reel is the ideal way to enjoy watering your garden, every day.
How it works
The 30m Retractable Hose Reel is a wall-mounted hose storage unit with a high quality spring-loaded hose. The specially designed ‘stop-anywhere’ locking mechanism secures the hose at any length, eliminating excess hose to prevent kinks and tangles.
To use, you simply pull the hose out to the desired length and pause to lock the hose. All you have to do to lengthen the hose is walk it out further and stop again, wherever you want. Once you’ve finished watering, lightly tug the hose to engage the automatic rewind system and the integrated self-layering mechanism neatly coils the hose into the reel as you walk it back in.
Inclusions
The 30m Retractable Hose Reel is a complete package that arrives fully equipped and includes:
- Spring-loaded hose reel unit pre-fitted with 30m of high quality hose
- Full set of pre-fitted Hoselink no-burst connectors including Universal Tap Connector and Hose Connector with Flow Control so you can easily switch watering accessories
- Premium 7-Function Spray Gun and Accessory Connector with Swivel
- 2m Leader Hose
- Durable Wall Bracket and Installation Hardware
- Retractable Hose Reel Plugs (to prevent wasps from nesting in screw holes)
Installation

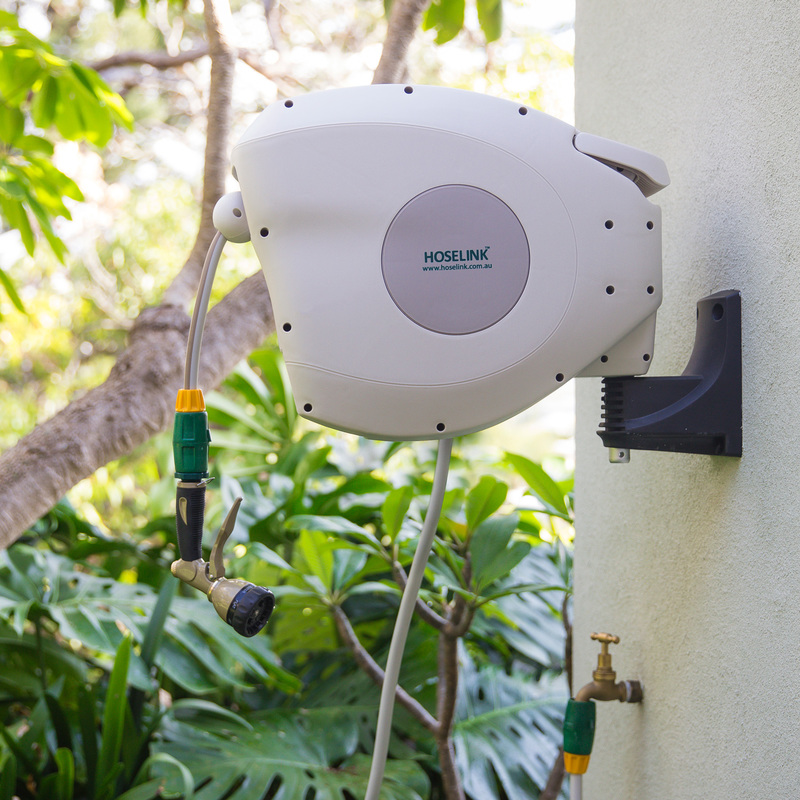

Follow our step-by-step instruction manual or installation video to quickly and easily install the wall bracket onto a solid wall or post using the included hardware kit. Place the hose reel unit onto the bracket and attach the leader hose to the tap. The hose reel unit will swivel 180 degrees on the bracket, following your direction as you water.
Warranty
Hoselink Retractable Reels are covered by a 2 year warranty and a 30 day money back guarantee.
Easy to Use
Effortlessly keep your hose at any length with the specially designed ‘stop-anywhere’ locking mechanism. To put your hose away, simply give it a gentle tug and the automatic rewind feature and self-layering mechanism retracts and coils your hose saving you time and energy.
Flexible Watering
Thanks to the cleverly designed mounting bracket, the hose reel pivots 180° and follows your direction around the garden as you water. When you’ve finished, the reel can be stored flat against the wall keeping your garden neat and tidy.
Ready to Go
The Hose Reel comes fully equipped and pre-fitted with Hoselink hose fittings and Metal 7 Function Spray Gun. Simply mount the bracket to the wall using the supplied stainless steel screws and you’re ready to start enjoying hassle-free watering!
Built Tough
With UV stabilised casing, stainless-steel hardware, premium quality hose, and no-burst hose fittings, the 30m Hose Reel is ready for whatever Australia’s tough environmental conditions throws at it. The durable case protects the hose to remain flexible in the cooler months and safe from the heat of the harsh summer sun.
Comfortable to Carry
Integrated carry handles make it easy to lift the Hose Reel from its mounting bracket to transport it wherever you need. With the optional purchase of an Additional Bracket you can use and store your Hose Reel in multiple locations. The Hose Reel can also be padlocked (sold separately) to the bracket to thwart would-be thieves.
Complete Package
The Hose Reel arrives at your door with everything you need including a complete set of Hoselink hose fittings, Metal 7 Function Spray Gun, 30m of quality hose, a 2m leader hose and mounting bracket. Everything is set up and ready to go.
Product Specifications
| Model Name | 30m Retractable Hose Reel |
| Model Number | 3330 |
| Material | Reel/bracket (polypropylene), hose (PVC), screws/pins (stainless steel), plugs (plastic) |
| Colour | Off-White |
| Hose Reel Dimensions | H49cm x W27cm x D61cm |
| Mounted Hose Reel Dimensions | D71cm (when facing out) D27cm (when pushed flat against wall) |
| Universal Bracket Dimensions | H20cm x W10.5cm x D16cm |
| Weight | 13.95kg |
| Fitting Size | 12mm |
| Maximum Pressure | 150psi |
| Maximum Water Temperature | 40 degrees |
| UV Resistant | Yes |
| Wall Mounted | Yes |
| Leader Hose | 2m |
| Assembly Required | Yes (you will need a drill) |
| Use with Water Tanks | Yes* |
* There is some loss of pressure when using a Retractable Hose Reel (particularly the 20m, 25m and 30m models) with water supplied from a tank. Used in conjunction with a pump, pressure may be sufficient for normal use, however you should take this into consideration before purchasing. If pressure is very low, a regular hose may be more suitable.

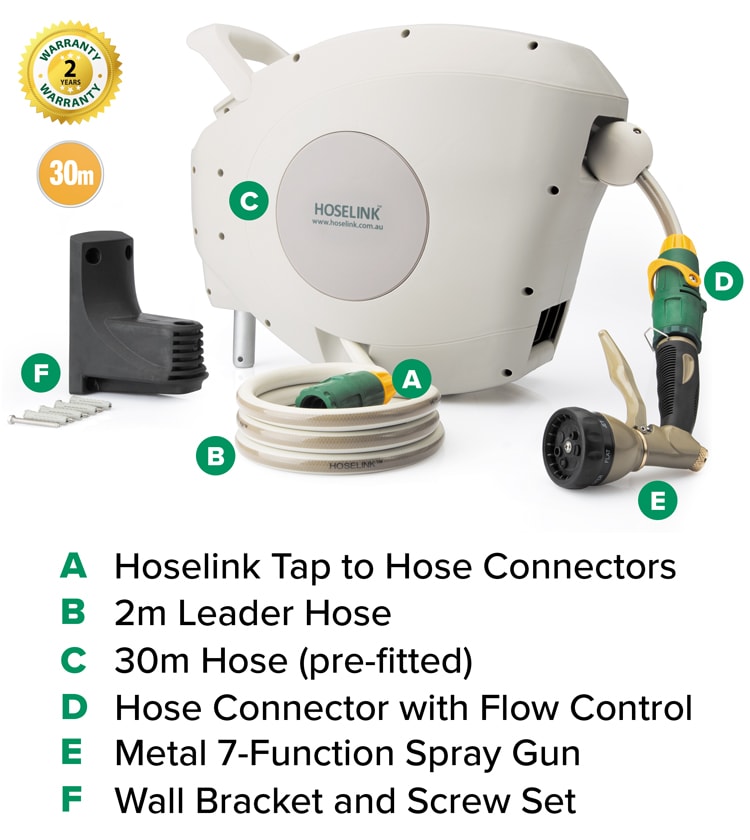

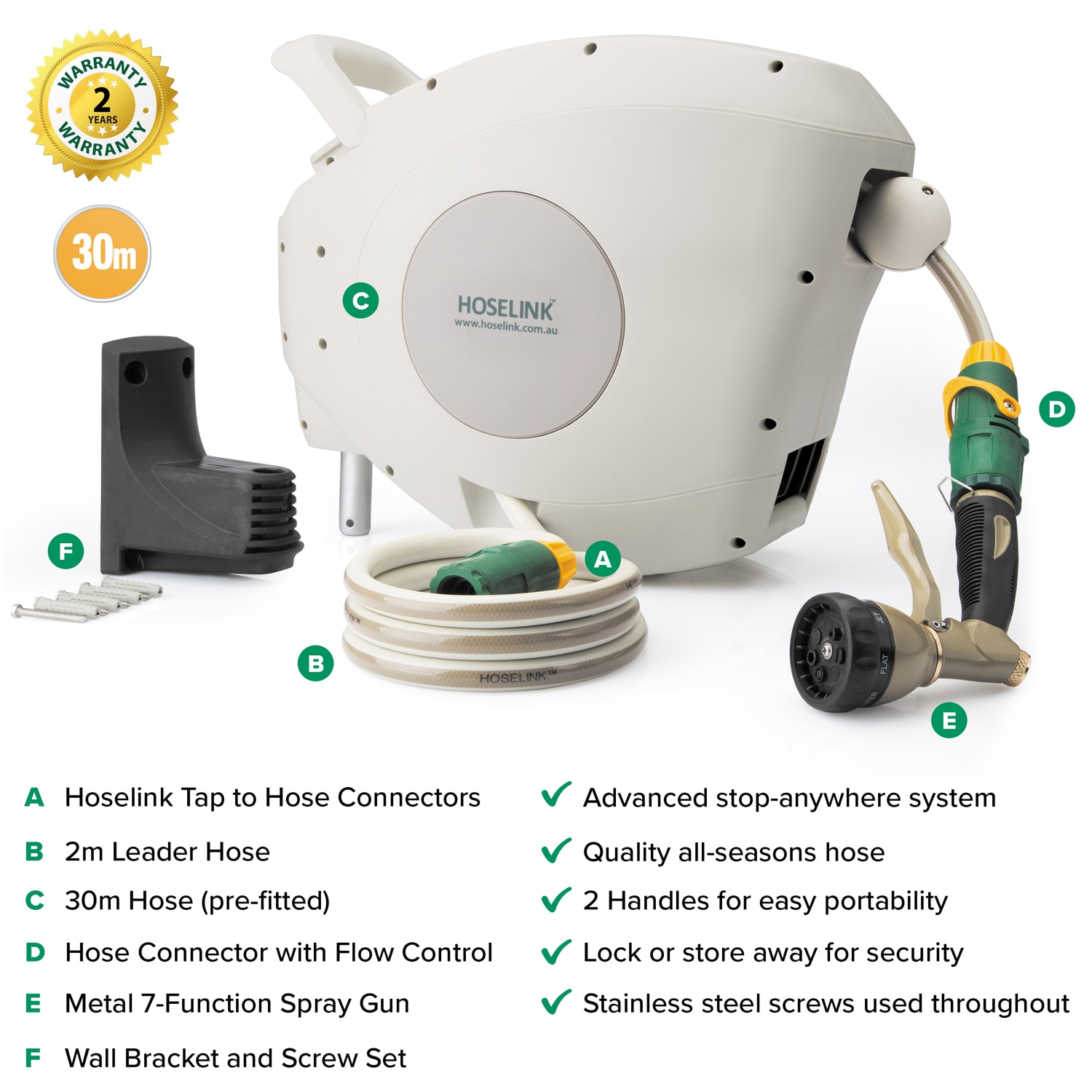

What's Included
- Spring-loaded Retractable Hose Reel
- 30m of Quality Hose
- 2m Leader Hose
- Set of Hoselink fittings including Hose Connector, Hose Connector with Flow Control (both pre-fitted), Universal Tap Connector, Accessory Connector with Swivel, Premium 7 Function Spray Gun, Spare O-Rings (x3)
- Mounting bracket
- Stainless steel screws (x4)
- Washers (x4)
- Masonry plugs (x4)
- Instruction Manual
Warranty
| Retractable Hose Reel Unit | 2 years |
| Tap to Hose Connector Set | 3 years |
| Hose Connector with Flow Control | 12 months |
| Accessory Connector with Swivel | 12 months |
| Premium 7 Function Spray Gun | 12 months |
Q. Can I put my own hose in this hose reel?
A. No, you cannot put your own hose into any of our Retractable Hose Reels, nor can you replace the hose in the reel. The retraction mechanism operates via a spring, which is pre-fitted with the hose during manufacturing.
Q. Which hose from your range comes in the hose reel?
A. This product uses a specially designed hose not sold separately. The hose is kink-resistant, high quality and fully flexible to make it suitable for coiling up neatly into the hose reel unit.
Q. Does the hose in the hose reel kink?
A. This hose has been specifically designed for use in an auto-rewind hose reel unit and must be soft and pliable so that it retracts easily back inside. Although this hose is not designed for kink-resistance specifically, using a hose reel greatly reduces the chance of a kink occuring. This is due to only using the correct length of hose for the task at hand, so there is no extra hose for a tangle or kink to occur. In addition, the retraction mechanism on the reel ensures that the hose is always reeled back in a straight line, so the hose does not get twisted (a common cause of kinks).
Q. My tap is 3m away from where I need to put the hose reel. What can I do?
A. You can add an additional length of hose to the included 2m Leader Hose (the hose that runs from the tap to the hose reel) in order to reach your water supply. To do this, you will need a suitable length of hose fitted with Hoselink connectors on either end. If you have a suitable hose length for this purpose, we recommend purchasing a Hose Joiner Set (2410). Alternatively, we sell Leader Hose Extensions in 1.5m and 5m lengths pre-fitted with connectors, for your convenience.
Q. Does the hose reel have to be mounted?
A. Yes, because it uses tension for retraction and extension, the hose reel unit must be mounted to a solid wall or post to correctly function.
Q. If I want to mount the reel on to a post, how deep should the post be sunk into the ground?
A. The post depth required depends on a number of factors, including how hard packed the soil is and how much concrete is used. We suggest 0.5m as a safe depth for the post before pouring concrete. In addition, we would recommend the hole be 30cm square to provide enough concrete to keep the hose reel firmly in place.
Q. Can I use the Retractable Hose Reels with hot water?
A. No, they are not recommended for use with hot water.
Q. Can I leave the tap turned on at all times?
A. We recommend turning the water off at the tap at the end of each watering session. The increased pressure from the water may cause unnecessary wear to the internal mechanism of the hose reel, potentially shortening the life of the product.
Q. What makes the 30m Retractable Reel different to your other reel options?
A. Whilst all of our reels are backed by the same high standards and quality, this particular reel is pre-fitted with 30m of kink-resistant hose, the longest length we offer. This makes the 30m reel a much more suitable option if you occupy a large garden or outdoor space that requires greater water coverage.
Q. Is the 30m reel larger, stronger or more durable than your smaller-sized reels?
A. The unit size is larger overall, to accommodate the longer hose length, but everything else is the same great quality, built to last. There is no difference in the 30m reel’s design or strength.
Q. Are there any extra parts or accessories to manage with the 30m reel?
A. No, the 30m reel comes with the same no-burst fittings, 7-Function Spray Gun, 2m Leader Hose and Wall Bracket, just like our other sizes.
Q. I struggle with arthritis, does a longer hose mean more work for me?
A. Our retractable reels have an internal spring-loaded mechanism, which means some tension is needed for the rewind mechanism to work. To retract 30m of hose there does need to be slightly more tension placed on the spring due to the longer length. This can make the hose feel a little heavy when pulling out the last few metres but overall should not affect the ease of use. If you find you are struggling with the hose, please contact our friendly customer service team on 1300 900 617 who would be happy to assist you.
Q. Is the 30m reel compatible with all accessories?
A. Yes! All of our Retractable Hose Reels, and in fact all of our products, are compatible with each other thanks to the unique bayonet-style fittings that point and twist to connect.
Q. Can I get a 30m Retractable Reel with the same functions as the 25m Hi-Flow Reel?
A. No, the additional feature of the Hi-Flow Reel is its larger 14mm diameter hose ideal for those with low water pressure at the property. All of our standard Retractable Hose Reels come with a pre-fitted 12mm hose.
